Galvanized Steel
Detectable Warning Surfaces
The Only Galvanized Steel Solution in Detectable Warning Tiles
The Only Galvanized Steel Solution in Detectable Warning Tiles

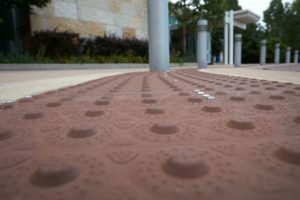

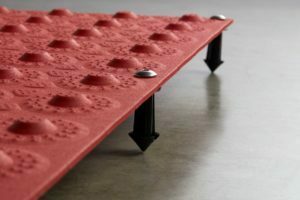

Galvanized steel offers long-term durability to withstand high-volume pedestrian traffic, snow and ice removal. Half the weight of cast iron, galvanized steel offers potential cost savings with easier installation and greater shipping efficiencies. TufTile detectable warning tiles are galvanized to a G90 standard, the same standard used for heavy-duty guard rails for exceptional service life. The unique anchor design holds tiles and wedges securely to the concrete.
- 10-year warranty*
- 10 and 16ga wet-set and surface-applied
- Sizes: 1’x1’, 2’x1’, 2’x2’, 2’x3’, 2’x4’, 2’x5’, 3’x1’
- Full size tiles up to 5-feet
- Radius options 9R–70R
- ADAAG/PROWAG/CA Title 24 compliant
- Replaceable and recyclable
Available Colors & Finishes
Our in-house powder-coating system was specifically designed for detectable warning tiles. A multi-stage wash, rinse, and prep station with high-temperature gas-fired curing oven ensures superior bonding and adhesion.
- UV and slip resistant finish - will not chip, crack, or peel
- Available in seven powder coated finishes and natural uncoated
Documents
Sell Sheets
Submittal Documents
Submittal Documents California
Installation Instructions
Engineering Drawings
Auto CAD Files
Safety Data Sheet
Warranty
Government Regulations
Buy American Certified
Parts List - 10ga
Parts List - 16ga
Patents
The EasyArc® Radius Calculator from TufTile quickly identifies the radius size closest to your project plans and creates a site-specific illustration with bill of materials.

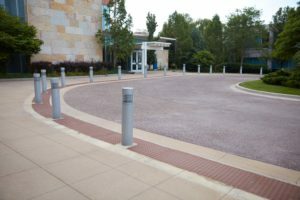

Tiles and wedges are arranged side-by-side to form up to 20 radius configurations ranging from 9R to 70R. Don’t overcomplicate, just calculate with EasyArc.
- CHOOSE YOUR MATERIAL AND UNIT OF MEASUREMENT
- ENTER THE RADIUS [A] OR HEIGHT [B]
- ENTER THE CHORD [C] OR ARC [D] LENGTH
