Cast Iron
Detectable Warning Surface
The Only Flat-Back Design in Cast Iron
The Only Flat-Back Design in Cast Iron

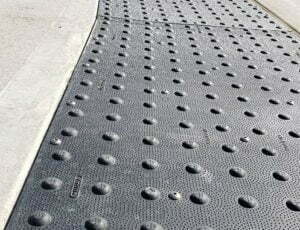

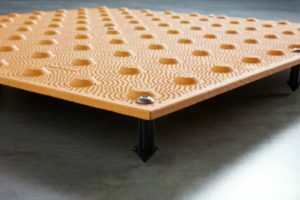

TufTile® premium cast iron detectable warning tiles outlast the most demanding pedestrian foot traffic and surfaces subject to snowplows. Our flat-back design minimizes trapped air between the tile and concrete. Corrosion-resistant anchors hold tiles and wedges securely in place. Join tiles into a single assembly with the TT-CONNECTOR to eliminate uneven connection joints and prevent concrete slurry from seeping up between the tiles. Achieve the look of rust without the mess of rust with TufTile’s in-house powder-coated patina finish.
- 10-year performance warranty*
- Tile sizes : 2’x1’, 2’x2’, 2’x30”
- Radius options 9R-70R
- ADAAG/PROWAG/CA Title 24 Compliant
- Replaceable and recyclable
Colors
TufTile's in-house powder-coating system was specifically designed for detectable warning tiles. A multi-stage high-pressure wash, rinse, and prep station followed by an epoxy primer ensures superior bonding and long-term adhesion of powder coated finish.
- UV Stable finish will not fade, chip, or peel
- ADA compliant wet & dry slip-resistant surface
- Available in seven colors and unfinished cast iron
Documents
Sell Sheet
Submittal Document
Submittal Document California
Installation Instructions
Engineering Drawings
Auto CAD Files
Safety Data Sheet
Warranty
Government Regulations
Buy American Certified
Parts List
Patents
The EasyArc® Radius Calculator from TufTile quickly identifies the radius size closest to your project plans and creates a site-specific illustration with bill of materials.

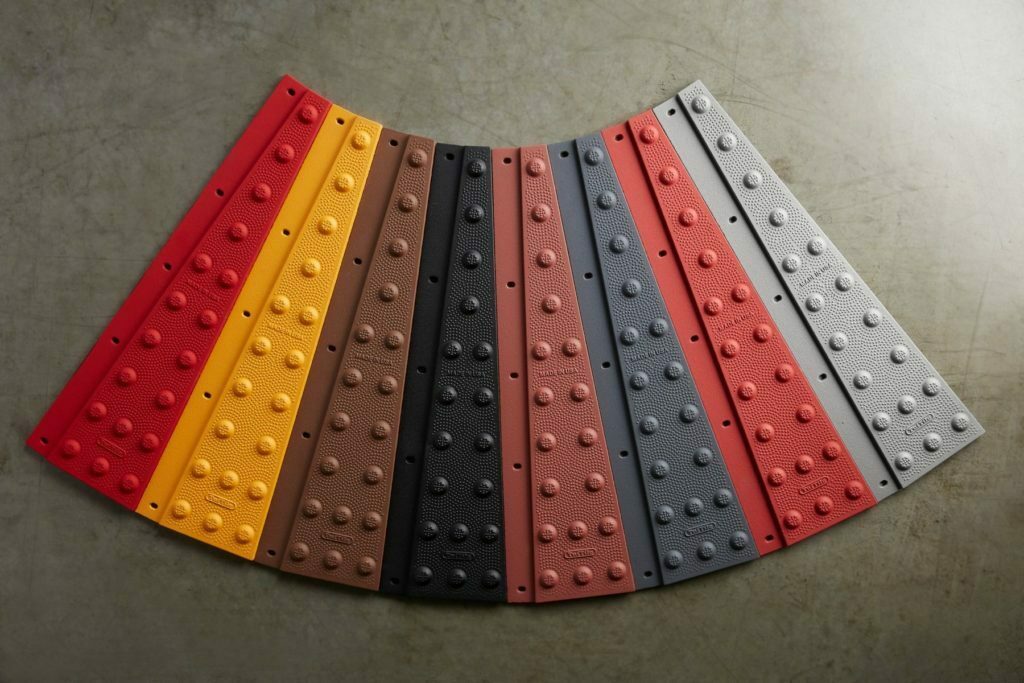

Tiles and wedges are arranged side-by-side to form up to 20 radius configurations ranging from 9R to 70R. Don’t overcomplicate, just calculate with EasyArc.
- CHOOSE YOUR MATERIAL AND UNIT OF MEASUREMENT
- ENTER THE RADIUS [A] OR HEIGHT [B]
- ENTER THE CHORD [C] OR ARC [D] LENGTH
